Project
Bridge along the M8 motorway – Hungary
Description:
Description:

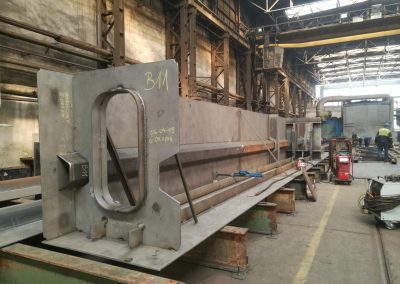

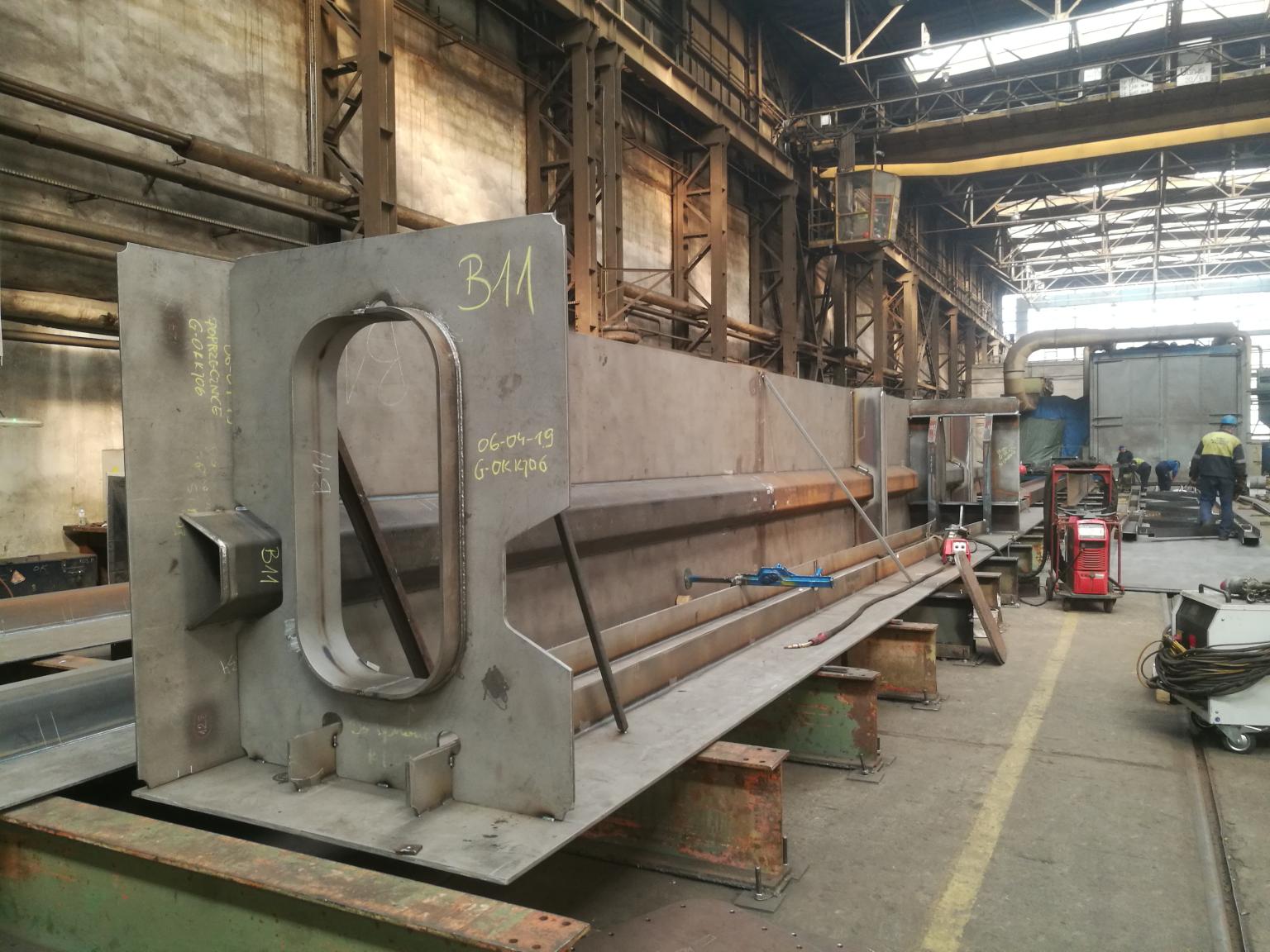

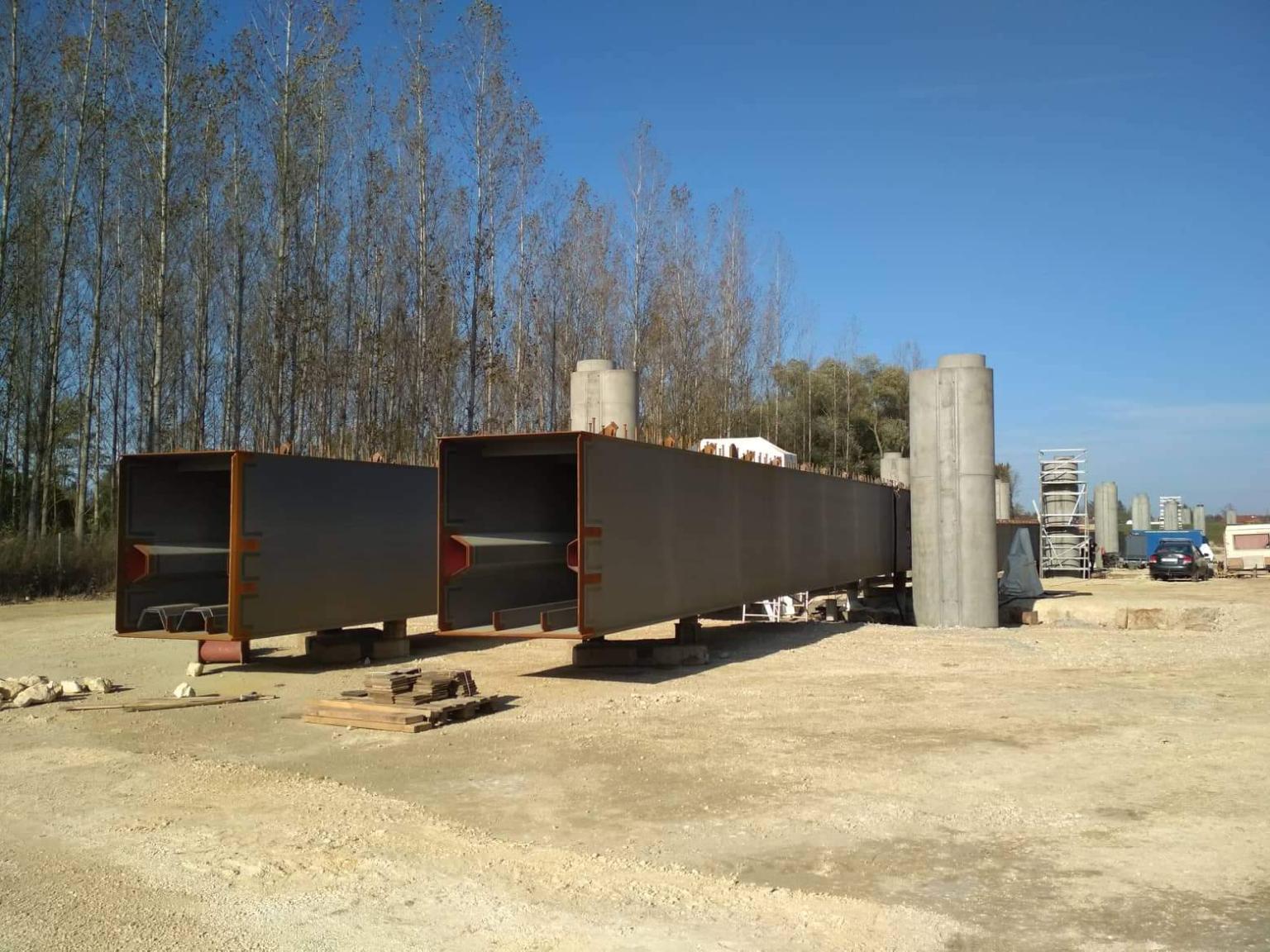

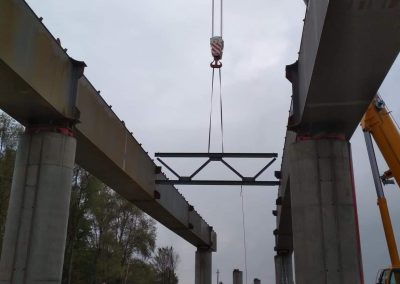

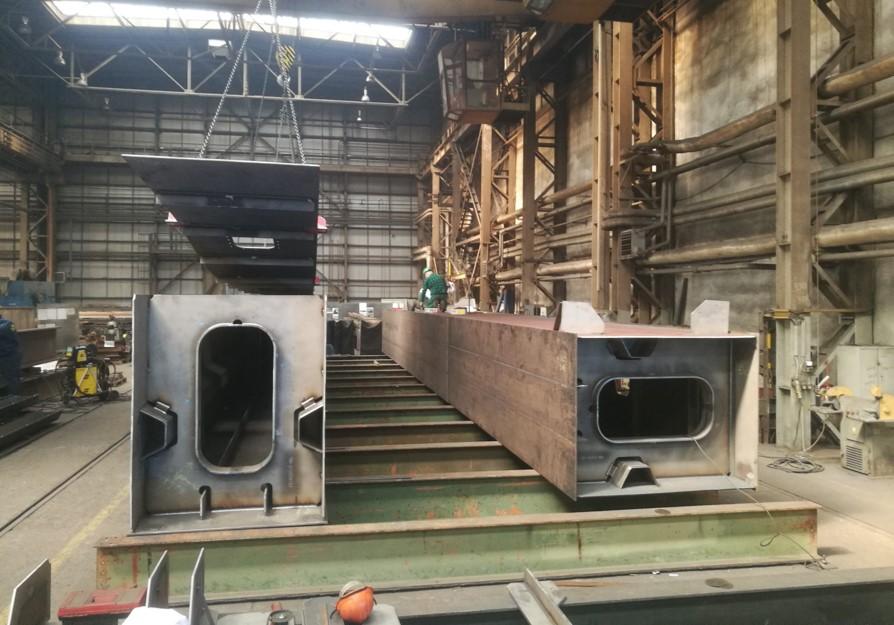

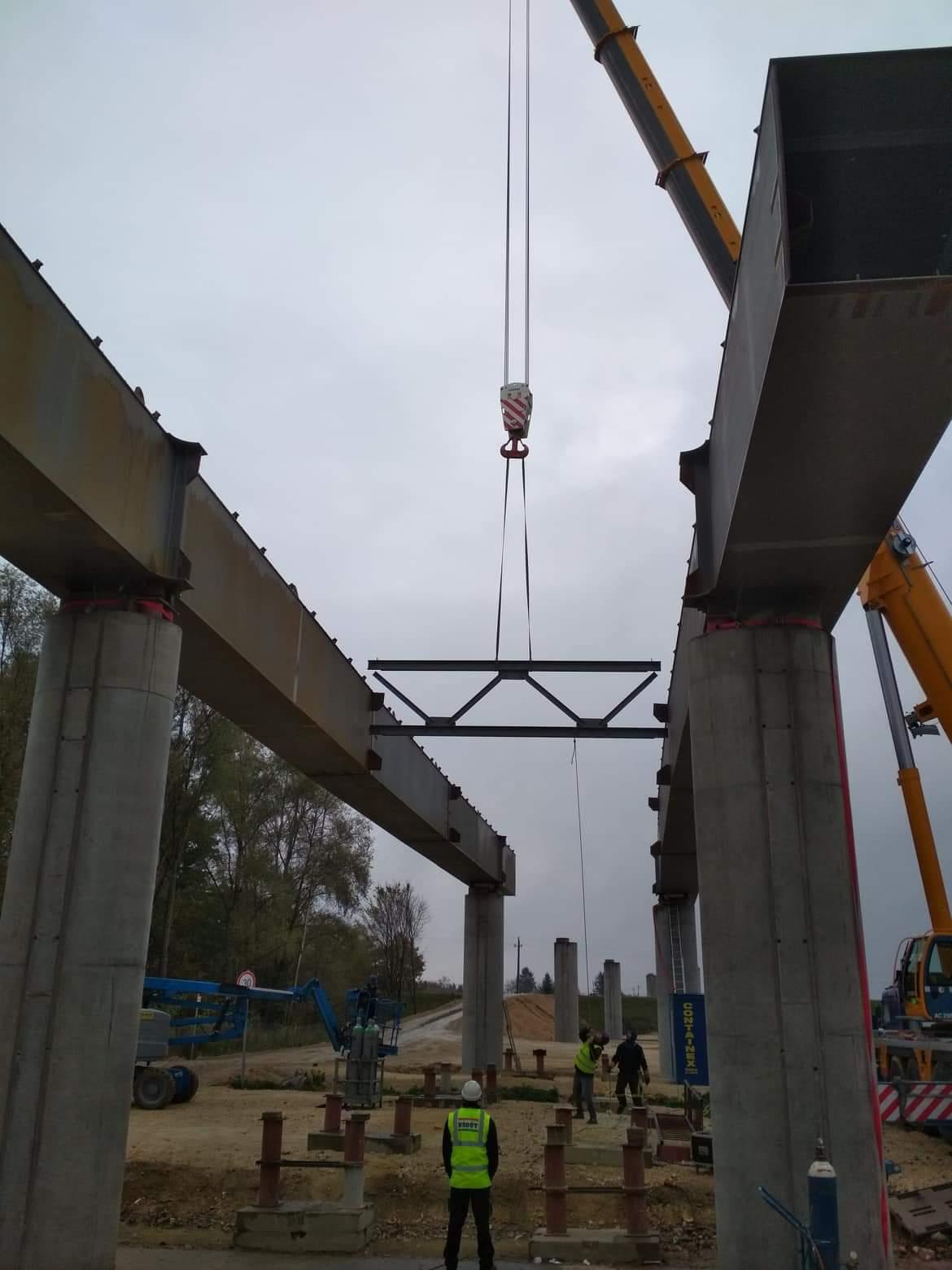

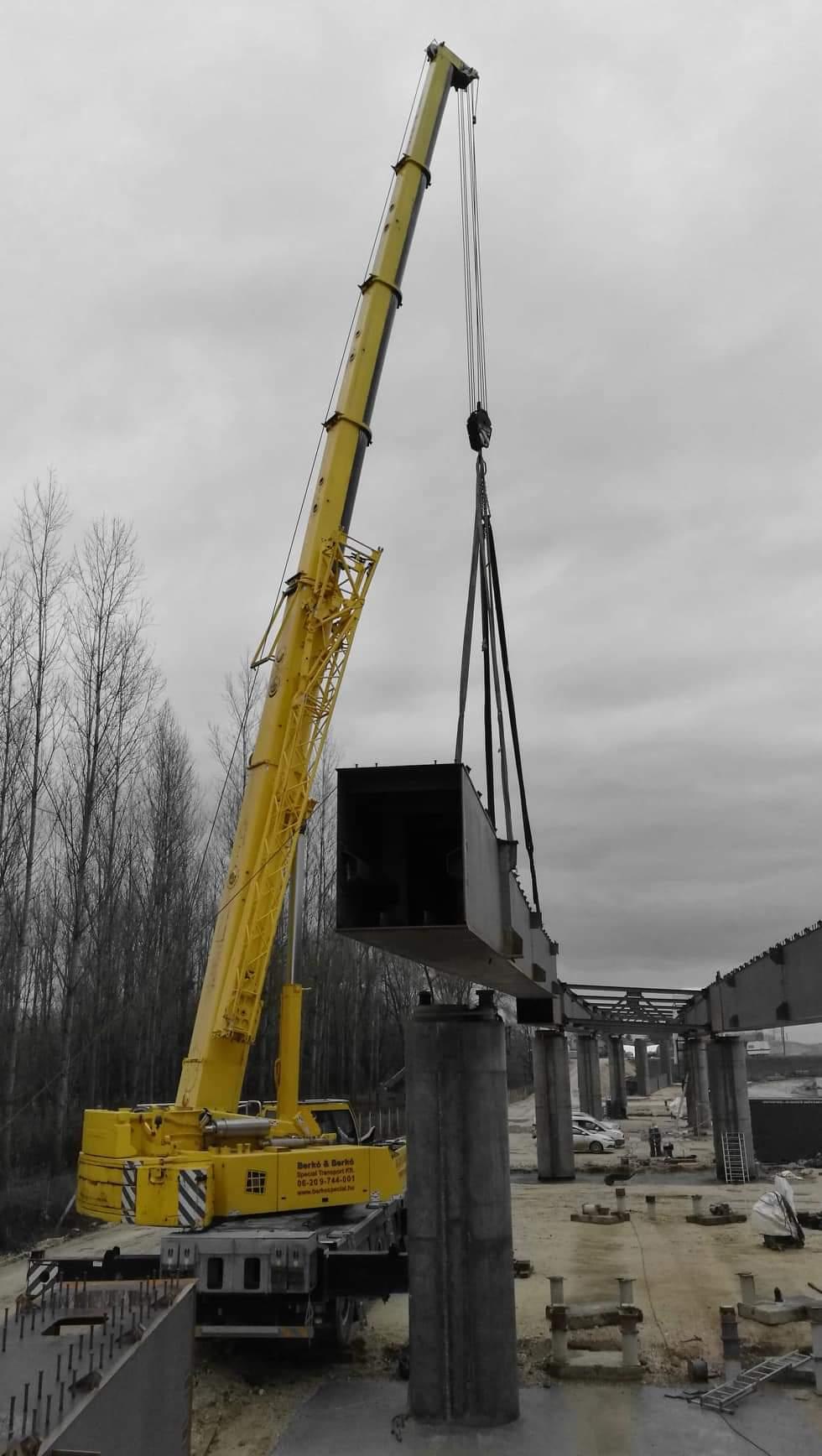

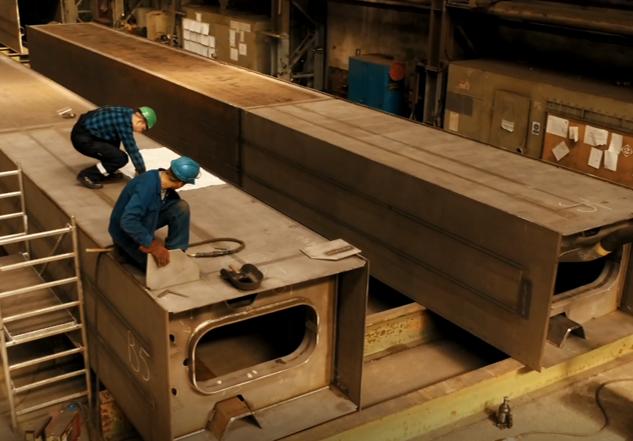

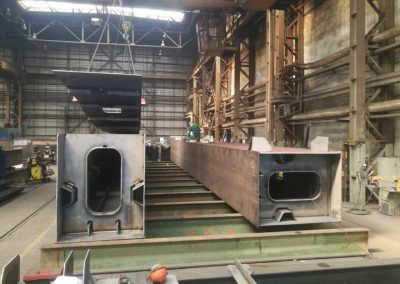

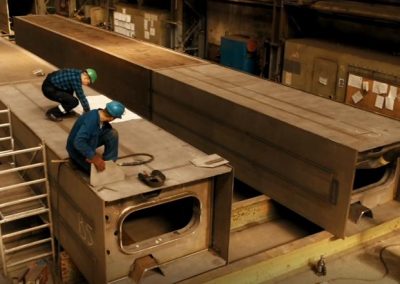

Nine-Span, combinated wharf in Hungary, in the M8 motorway (the section between the border Hungarian-Austrian and the town Körmend. Wharf located on the horizontal arc M8 motorway. Girders main bridge structure are steel plate girder closed sections (so-called. boxes) which have web reinforcements in the form of closed ribs. The wharf cross-bars are constructed as steel trusses. On the outside of the main girders there are also brackets supporting the supports of the reinforced concrete platform slab. The main girders are connected to the reinforced concrete platform plate by welded connectors.
Technical data:
- Material: S355J2+N, S235JR steel
- Number of spans: 9
- Theoretical span: 23.97 m + 40.59 m + 5*34.55 m + 40.59 m + 23.97 m
- Total width of the bridge: 16,63 m
- Overall length: 303,57 m
- Approx. weight of the steel structure: 675 Mg
Date:
Date:
20190102
20200917
