The bridge along the M44 motorway over the Tisza
Description:
Description:

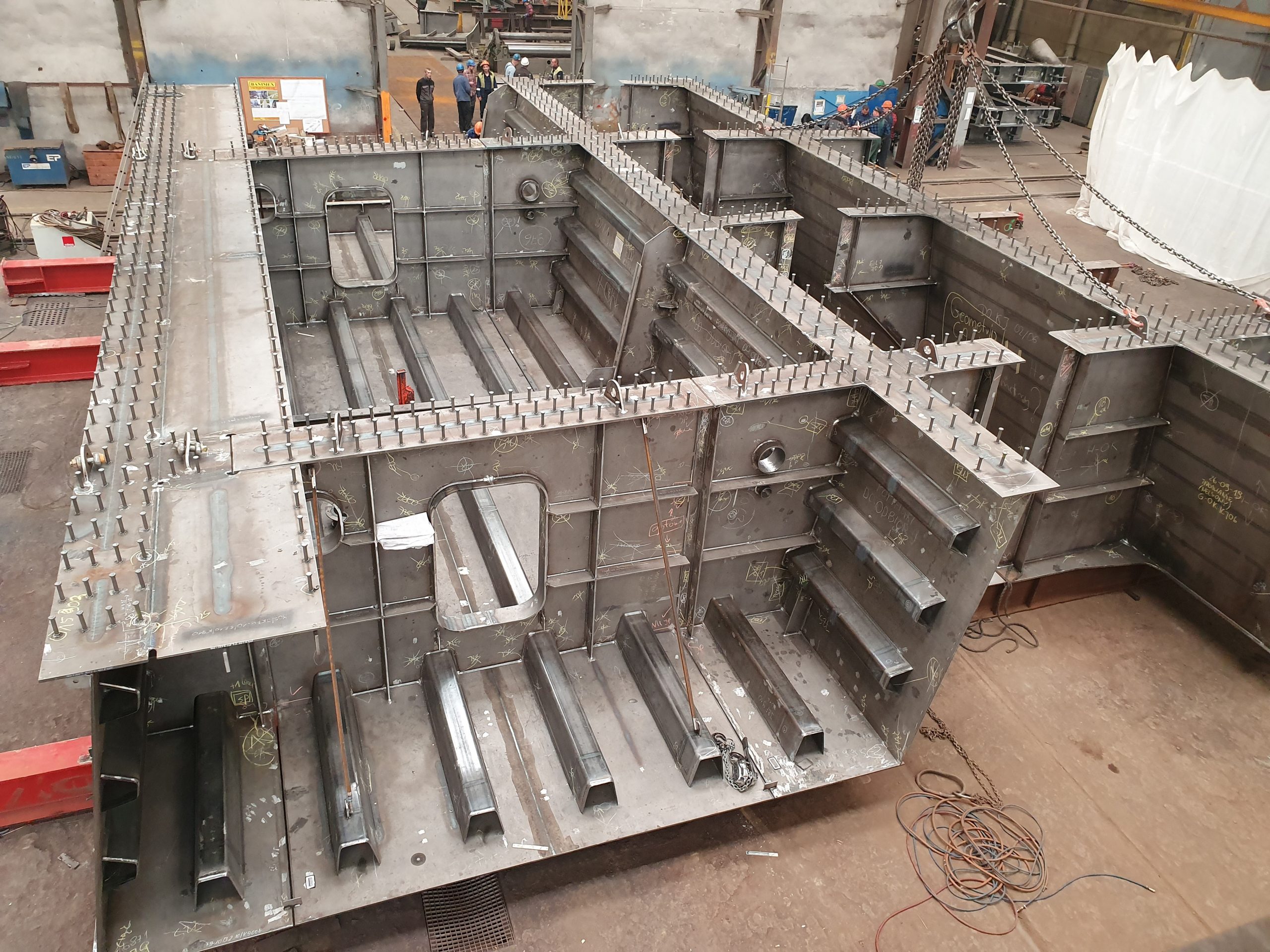

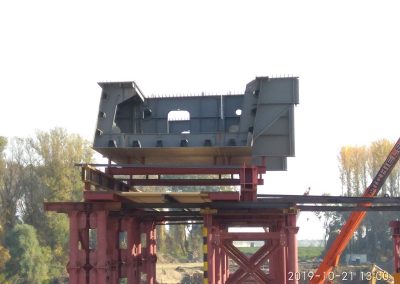

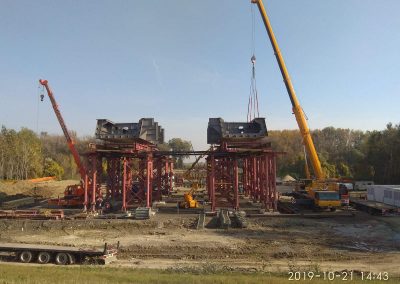

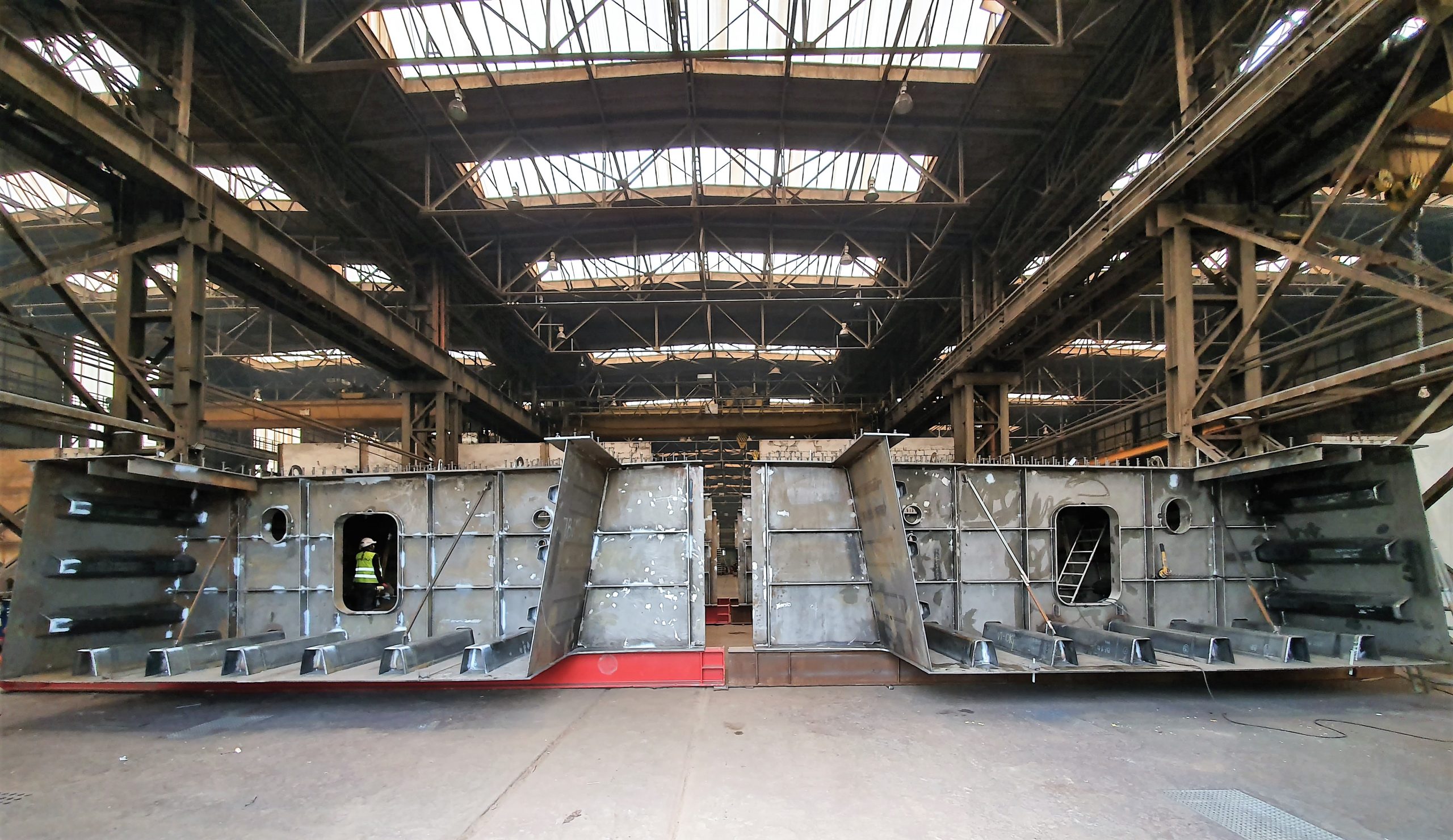

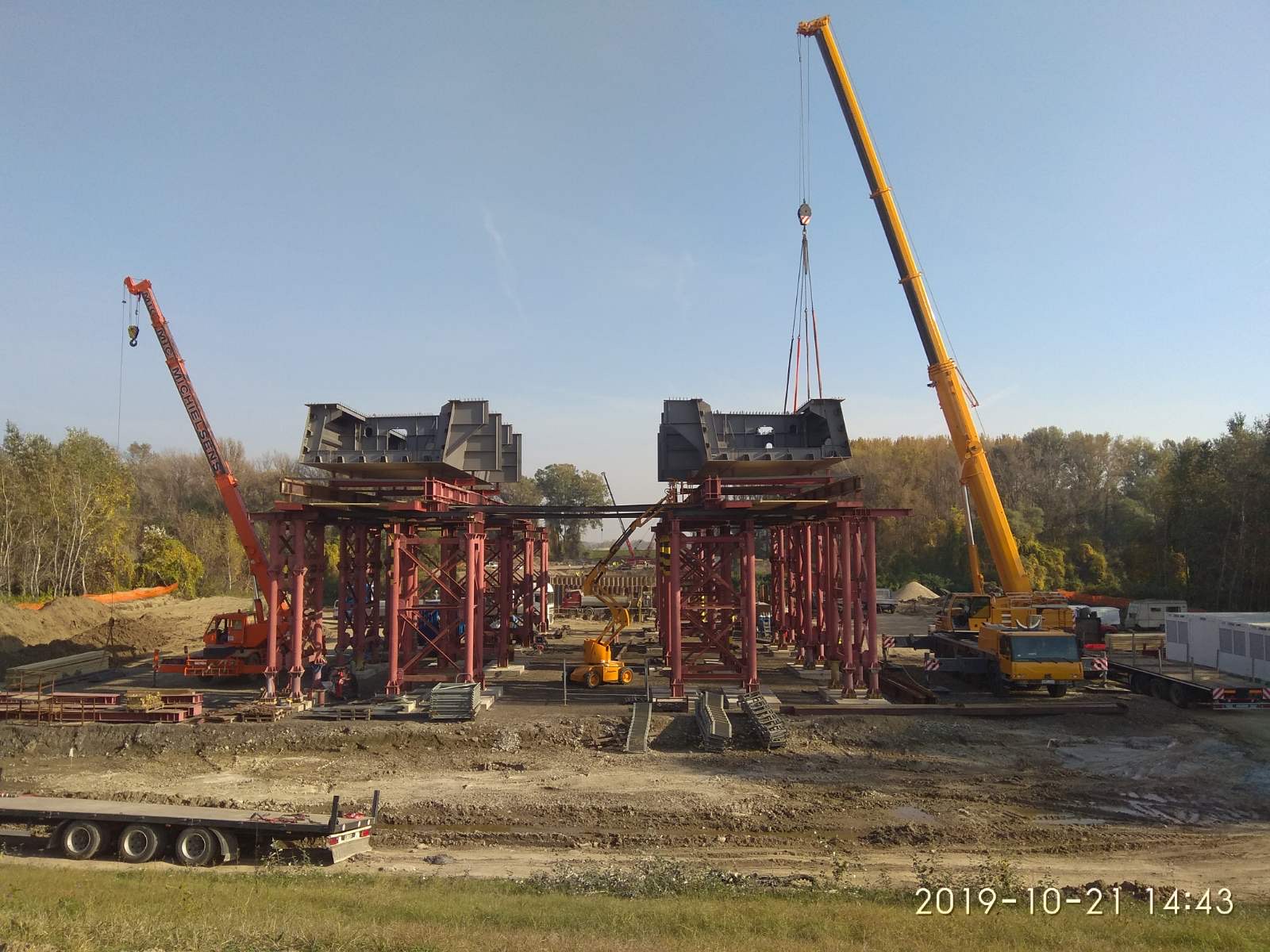

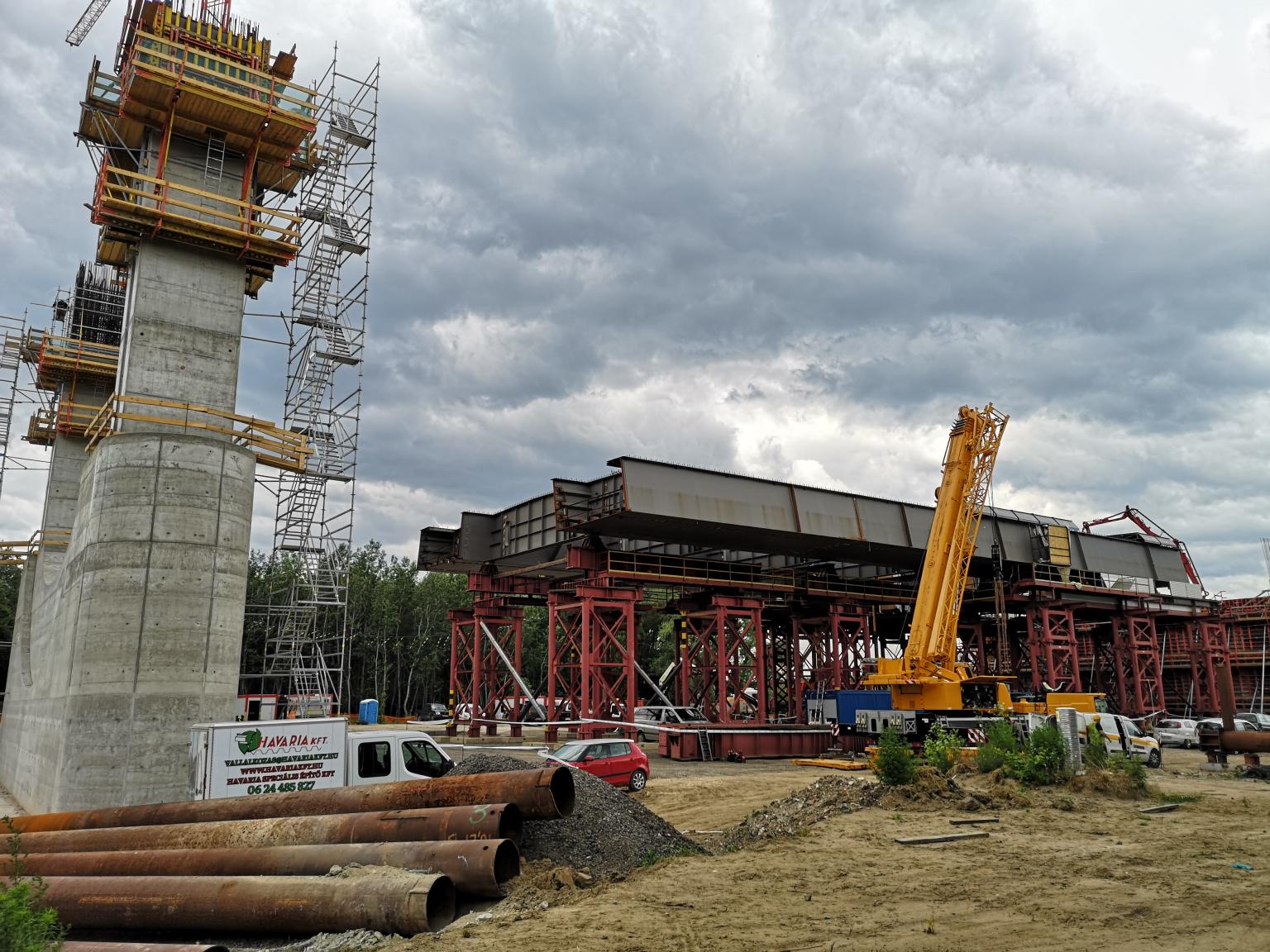

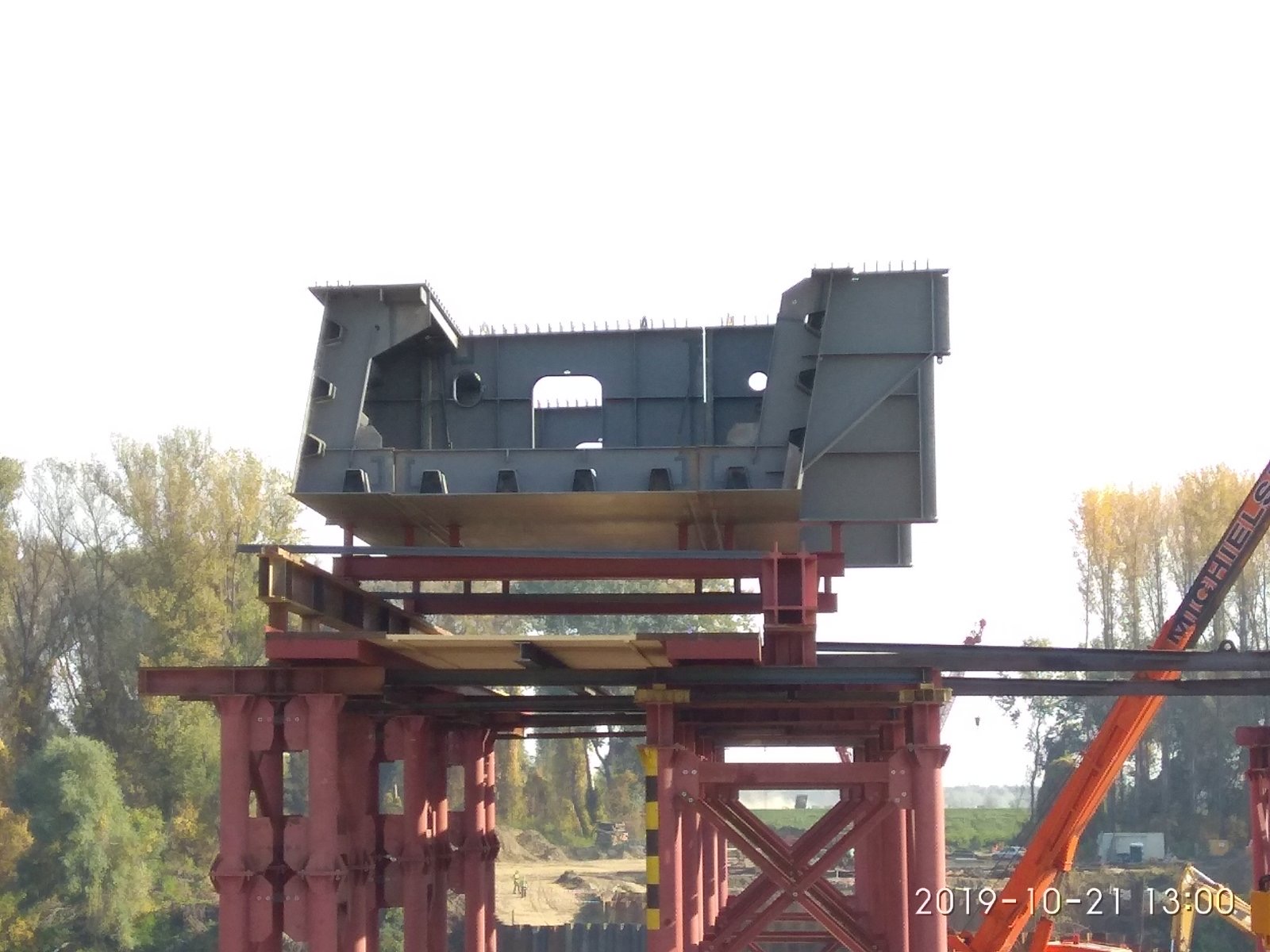

An eight-span, suspended bridge in Hungary, along the M44 motorway (on the section between Budapest and Békéscsaba), located on the Tisza River. The bridge has two reinforced concrete pylons to which current spans made of steel are suspended.
Technical data:
- Material (steel): S355J2+N, S235JR
- Number of spans: 8
- Theoretical bridge span: 45,1 m + 77,3 m + 152,0 m + 77,3 m +50,0 m + 51,3 m + 51,3 m + 48,05 m
- The total width: 23,53 m
- Total length: 556,55
- Approx. weight of the steel structure: 2200Mg
Date:
Date:
20190301
20201031
