The border bridge over the Danube along the bypass of the city of Komárom/Komarno (HU/SK)
Description:
Description:

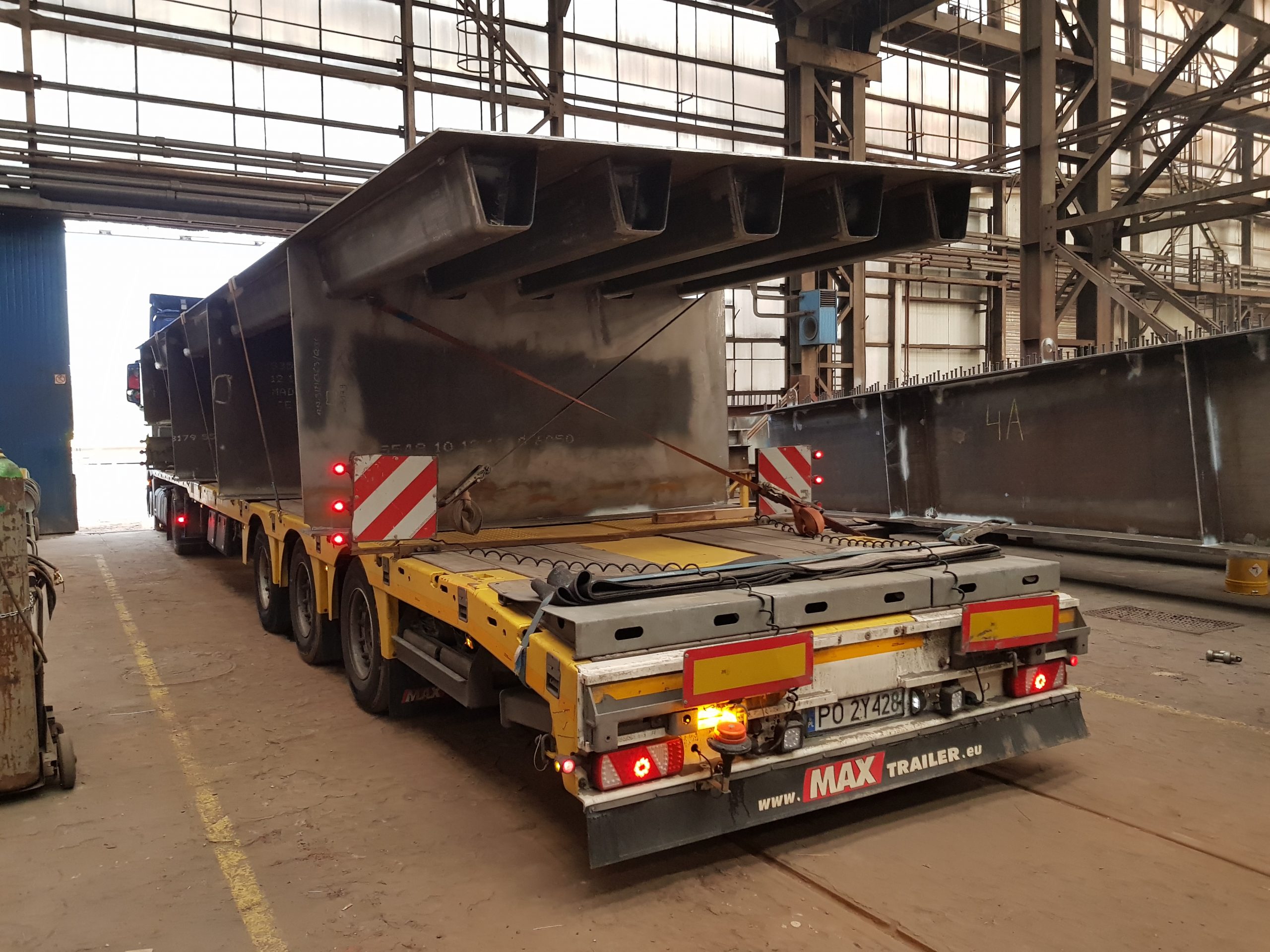

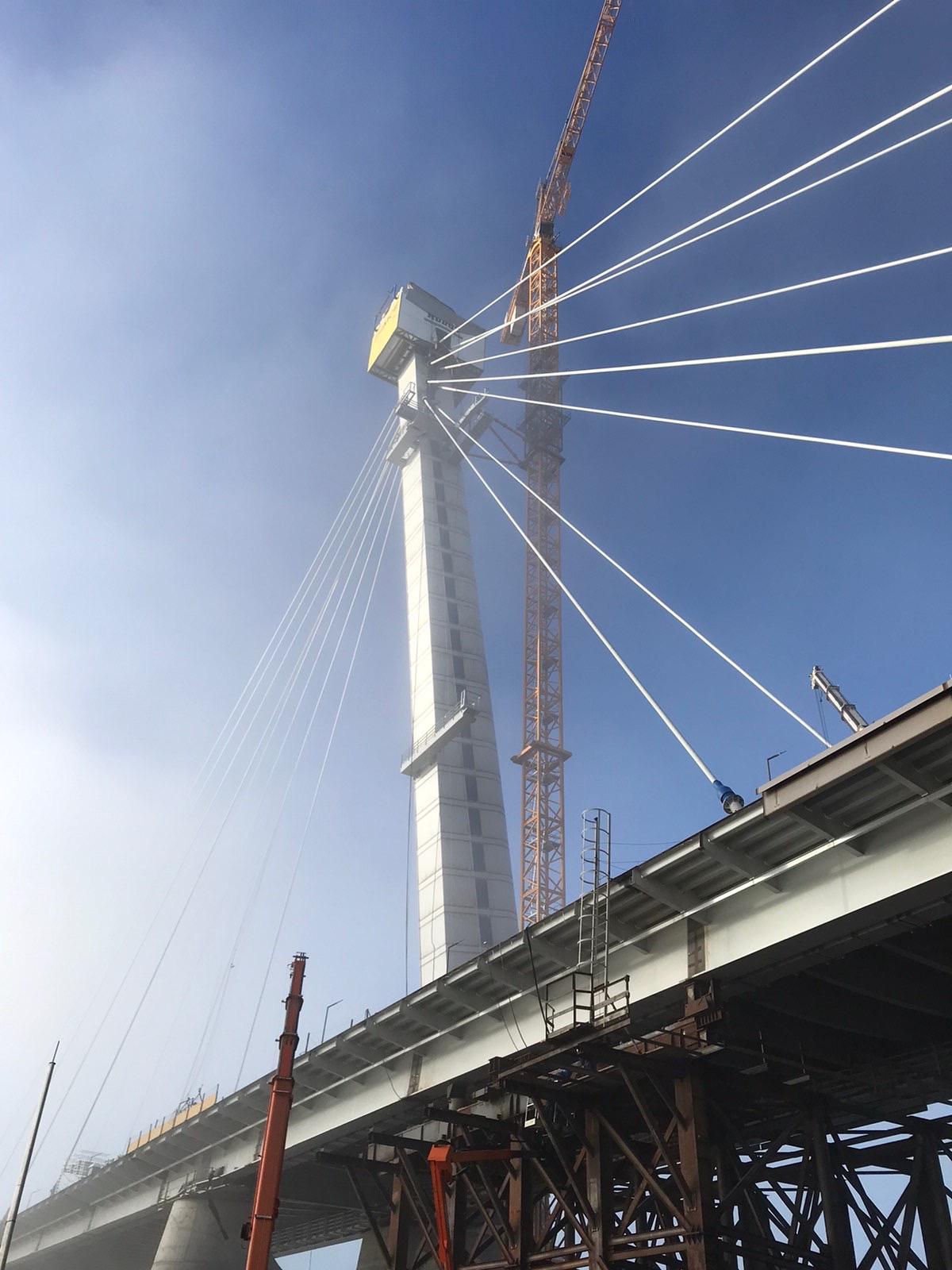

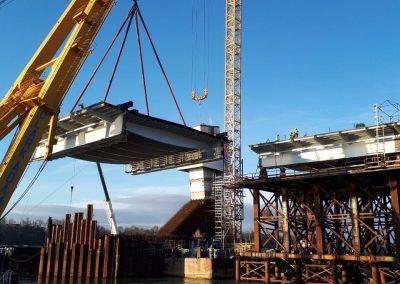

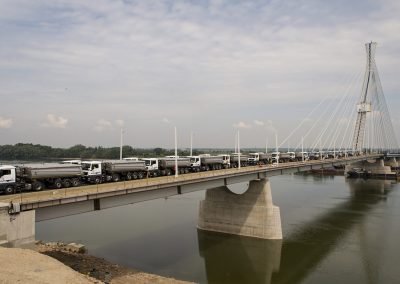

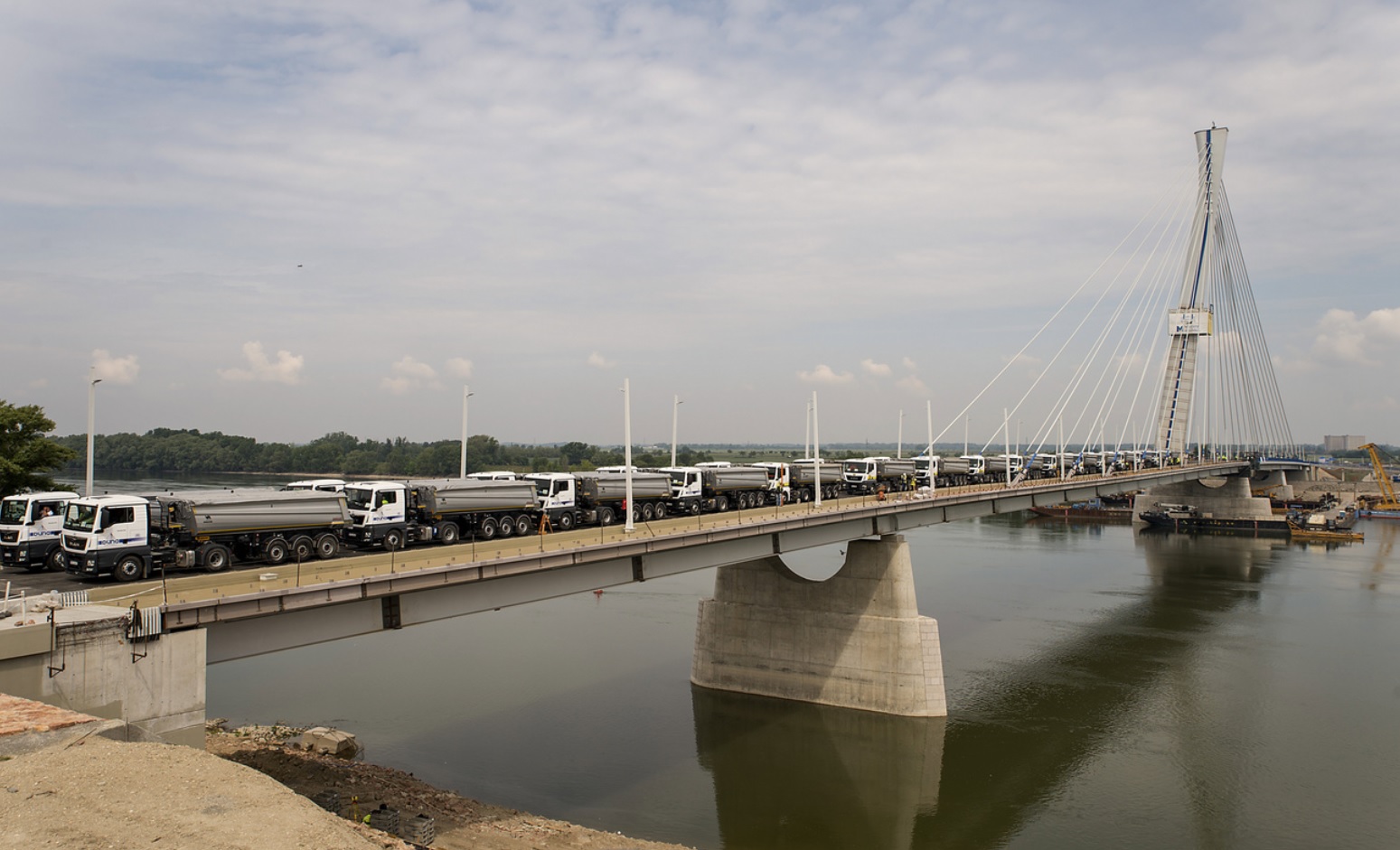

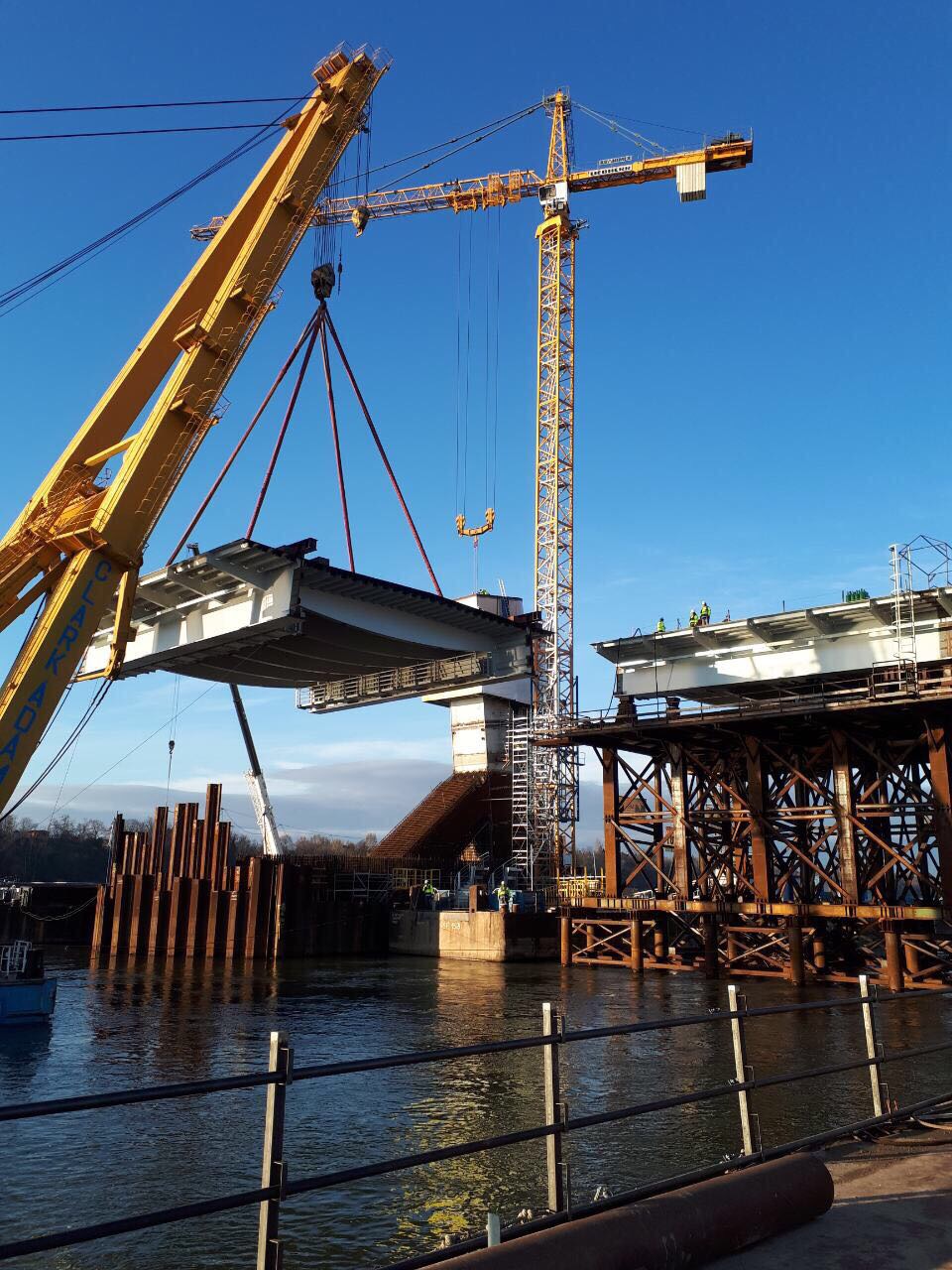

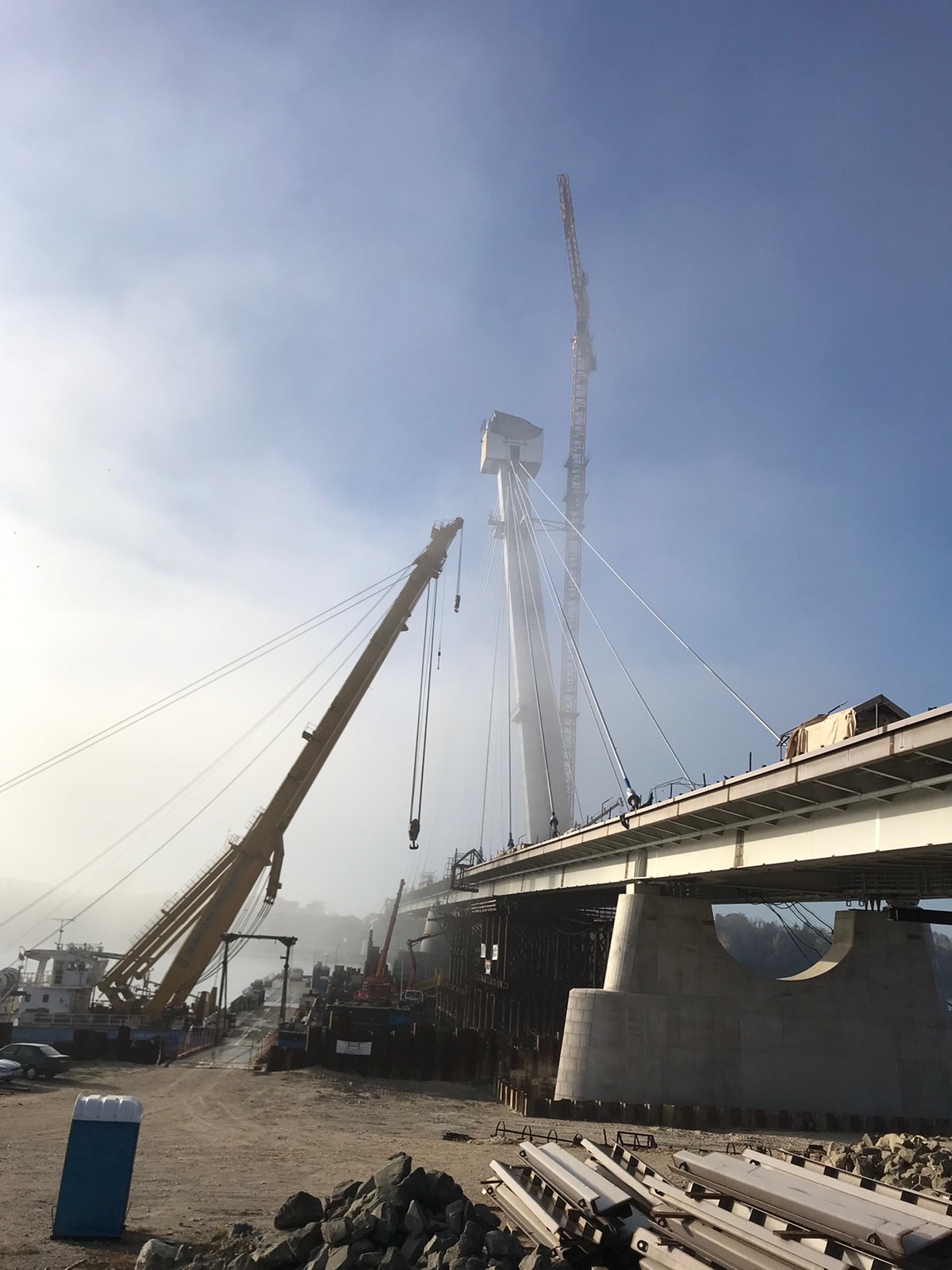

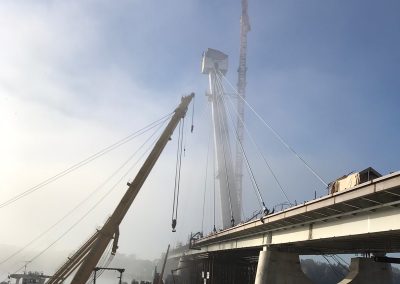

A five-span border suspension bridge, located on the Danube, connecting the Hungarian city of Komárom with the Slovakian city of Komárno . The bridge has one steel pylon, to which a steel orthotropic platform of the ridge has been suspended with shrouds. The platform of the bridge has grider main beams and girder cross-bars. Both the platform slab and the platform main beam webs are reinforced with closed ribs.
Technical data:
- Material (steel): S460 ML, S355ML, S355J2+N, S235J0, S235JR
- Number of spans: 5
- Theoretical bridge span: 66,0 m + 252,0 m + 120,0 m + 96,0 m +66,0 m
- The total width: 19,98 m
- Total length: 622,69 m
- Approx. weight of the steel structure: 5000 Mg
Date:
Date:
20171101
20190831
